A range of accessories and other equipment for thermal analysis.

Aluminium Expansion Coefficient Reference Materials

Ruston Services is able to provide high purity aluminium test pieces for thermal analysis expansion work. While not a traceable reference material, the high purity of the aluminium pieces ensures that the accuracy of the expansion measurements is high enough for most applications.

Two types of aluminium test pieces can be supplied

Aluminium Cylinder

Supplied at approximately 10mm length and 5mm diameter.
Other reference material lengths may be supplied if required

Aluminium Strip

Supplied at approximately 20mm length (± 0.5mm), 1mm thickness, and 4mm width.
Other reference material lengths may be supplied if required.

It is usual for an accurate length of the reference material to be determined prior to testing using the analyser in which the testing is to be carried out.

Each reference piece is supplied with a certificate of purity from the material manufacturer.

The expected aluminium expansion for different temperature ranges are as follows.




20°C - 100°C

23.86 x 10-6 /°C

20°C - 200°C

24.58 x 10-6 /°C

20°C - 300°C

25.45 x 10-6 /°C

20°C - 400°C

26.49 x 10-6 /°C

20°C - 500°C

27.68 x 10-6 /°C



1 test piece is priced at £100
(Price excludes shipping and UK VAT where applicable)

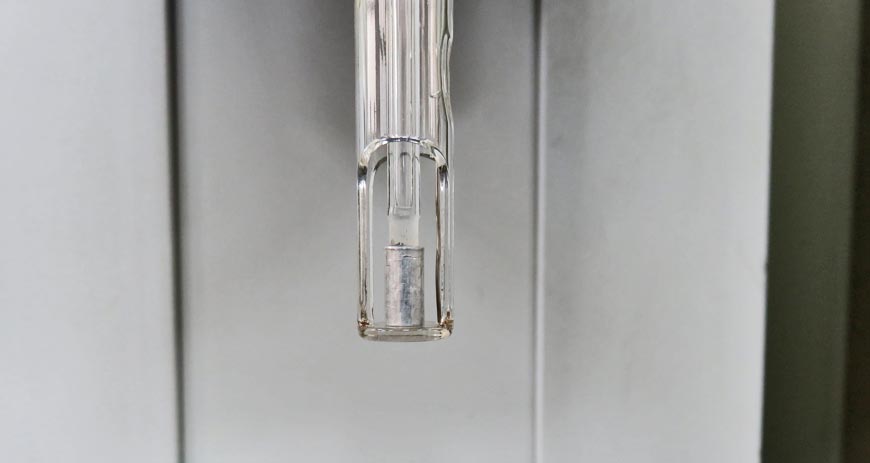

Expansion Reference Materials

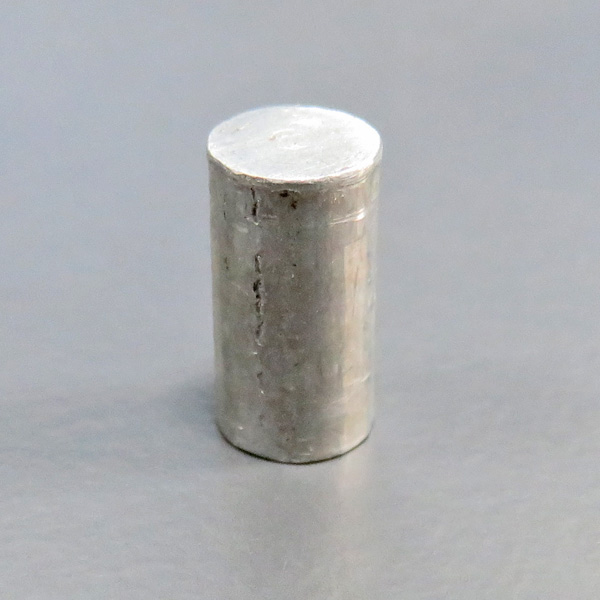

Expansion Cylinder

Expansion Reference Materials

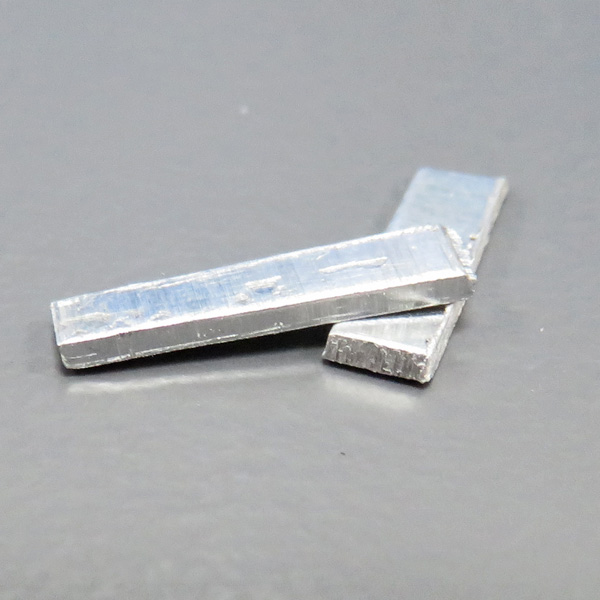

Expansion Strip

Expansion Reference Materials

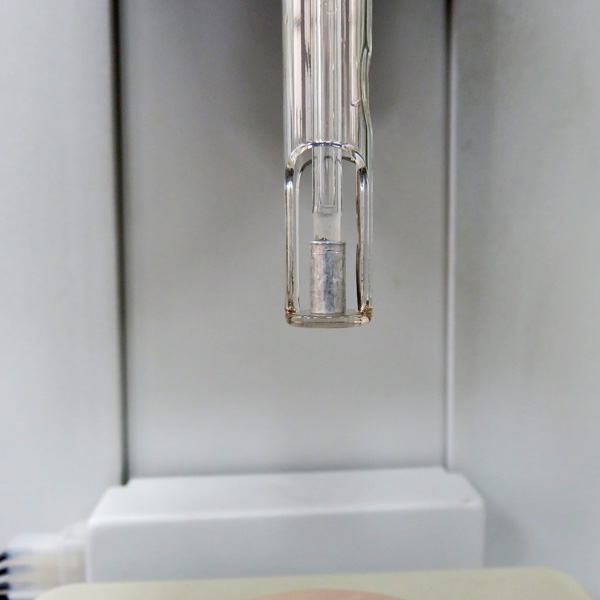

Expansion Piece Ready For Measurement
